Examples

The validation report for all run benchmarks examples and results are here.

After the successful compilation of the code one recommended step is to run all the examples by:

./run_examples.sh

It consists of a set of nuclear reactors of 7 nuclear reactors benchmarks:

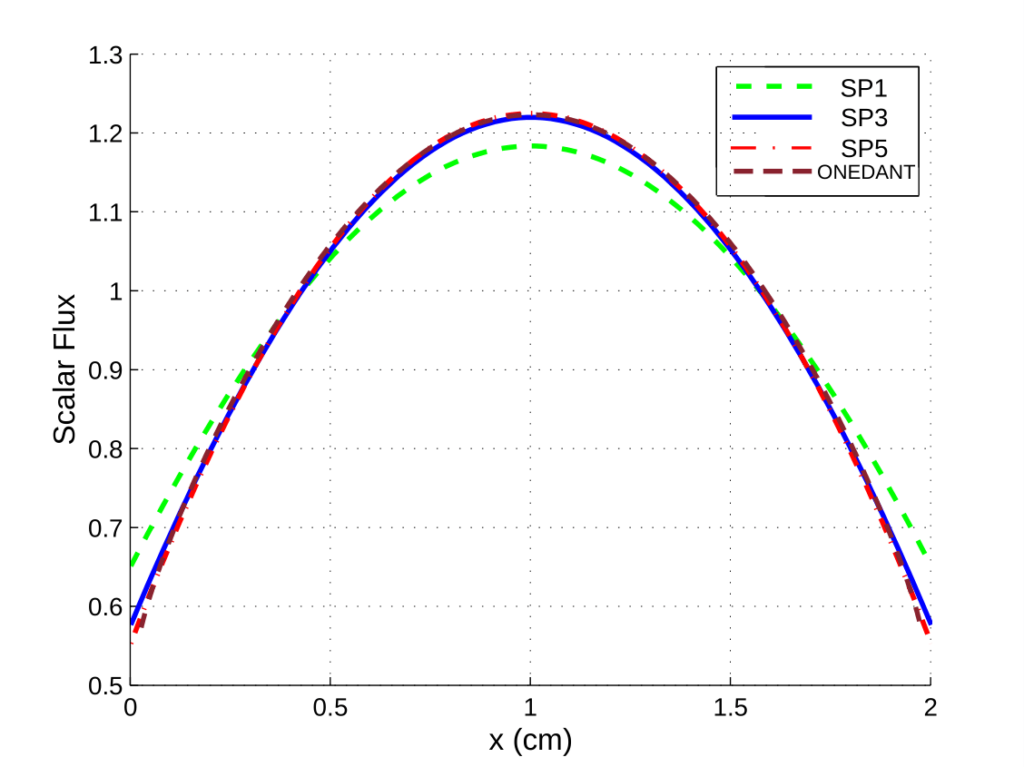

    1. 1D: Scalar flux for a example of a homogeneous slab of 2 cm solved with vacuum, zero current and zero flux boundary conditions.

      missing

    2. 2D_BIBLIS: Neutronic power for the classic neutron diffusion benchmark with a characteristic chess board pattern. Solved with SP1, SP3 and SP5 approximations.
      FirstMode SecondMode
      1st Mode 2nd Mode
      ThirdMode FourthMode
      3rd Mode 4th Mode
    3. 2D_C5G7: Neutronic power distribution for NEA 2D benchmark on deterministic transport calculations without spatial homogenization. The description can be found here.
      FirstMode SecondMode
      1st Mode 2nd Mode
      ThirdMode FourthMode
      3rd Mode 4th Mode
    4. 2D_VVER440: Nuetronic power associated with four modes for a hexagonal two-dimensional benchmark.
      FirstMode SecondMode
      1st Mode 2nd Mode
      ThirdMode FourthMode
      3rd Mode 4th Mode
    5. 3D_IAEA: Half radial planer of neutronic power associated with four modes for a classic 3D benchmark with rectangular geometry. The core configuration and material description can be found here.
      FirstMode SecondMode
      1st Mode 2nd Mode
      ThirdMode FourthMode
      3rd Mode 4th Mode

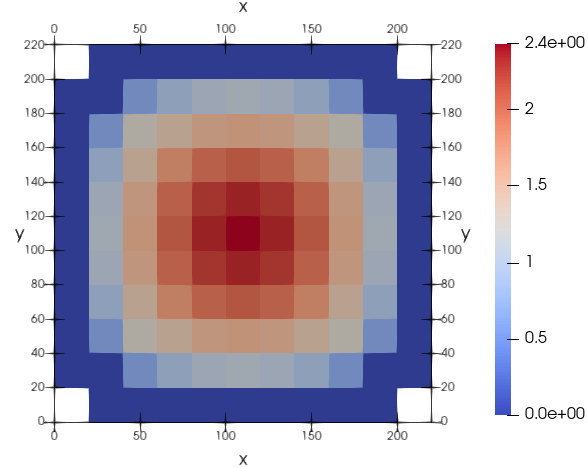

    6. 3D_Langenbuch: Half radial planer of neutronic power for another 3D benchmark.

      missing

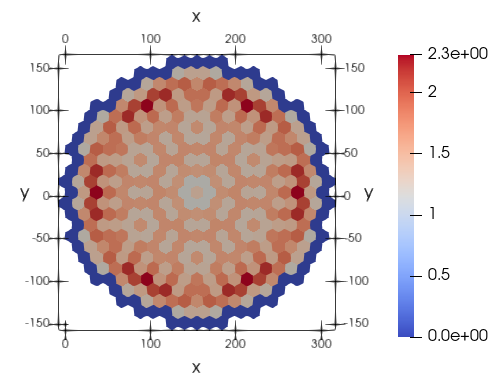

    7. 3D_VVER440: Half radial plane of the neutronic power with a hexagonal 3D benchmark.

      missing
